D50 Series · Heavy-Duty Industrial Quadruped Robots
Industrial-Grade Reliability | Long-Endurance Operation

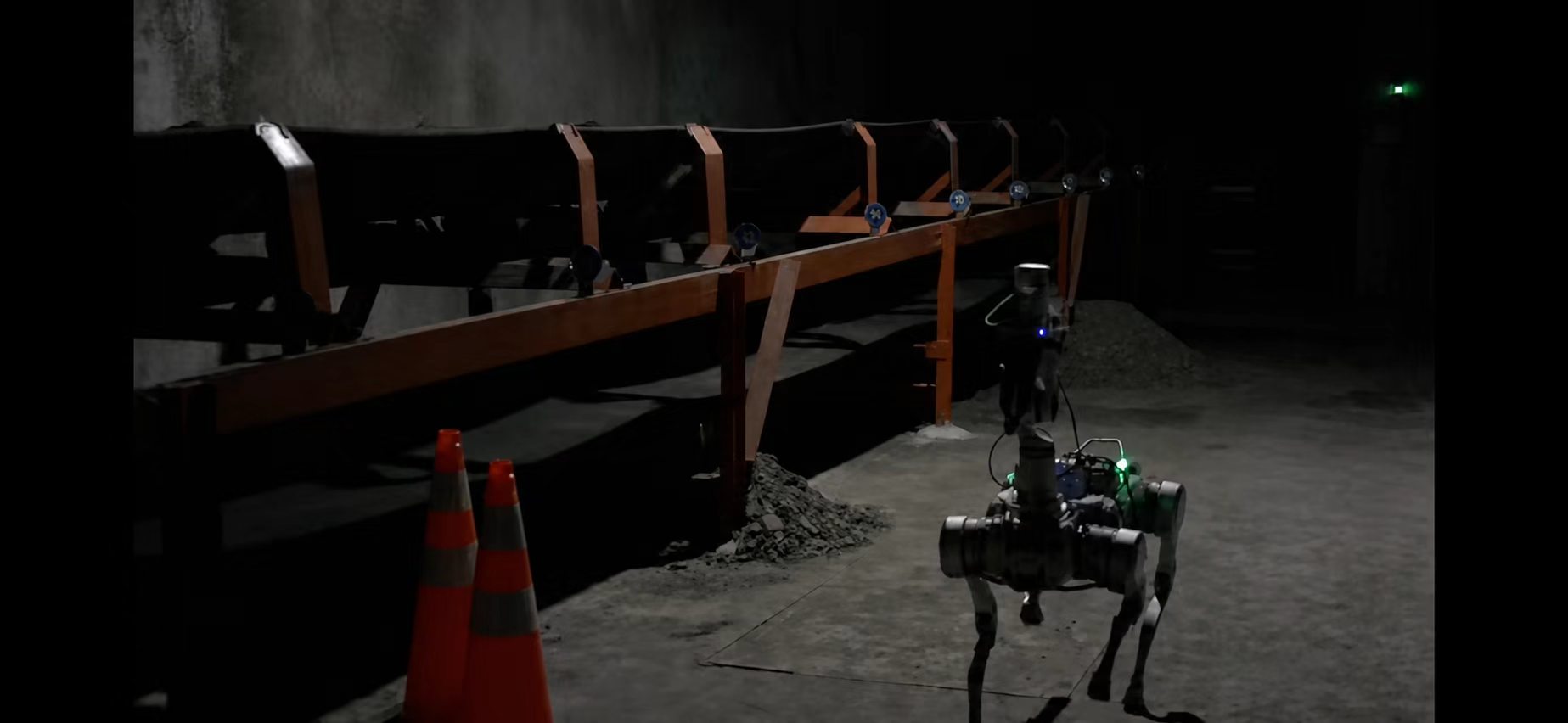

The LINXAI D50 Series is a versatile heavy-duty industrial platform engineered for complex industrial settings, balancing operational efficiency with all-terrain mobility. Depending on the configuration, it achieves continuous obstacle clearance of up to 20cm or 40cm, making it ideally suited for compound missions that require long-distance travel with occasional obstacle traversal — including plant-wide inspections, emergency material transport, and outdoor operations on mixed terrain.。

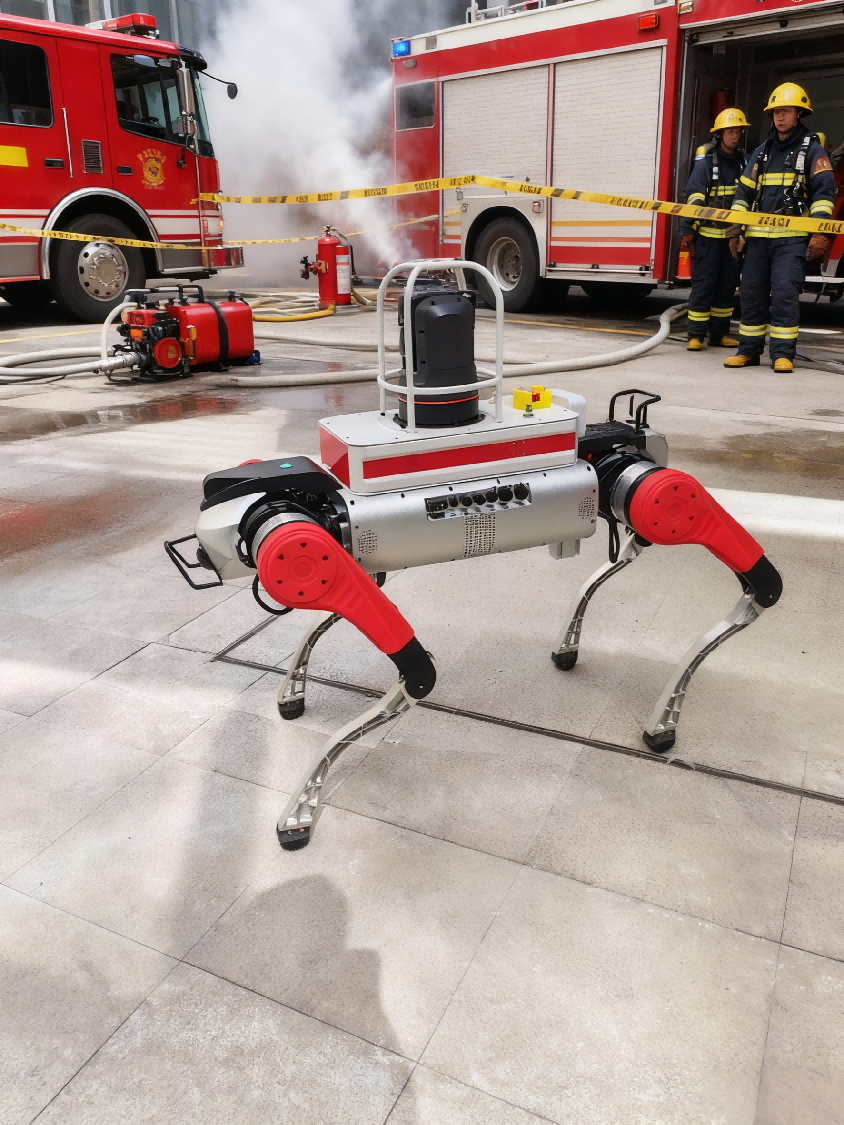

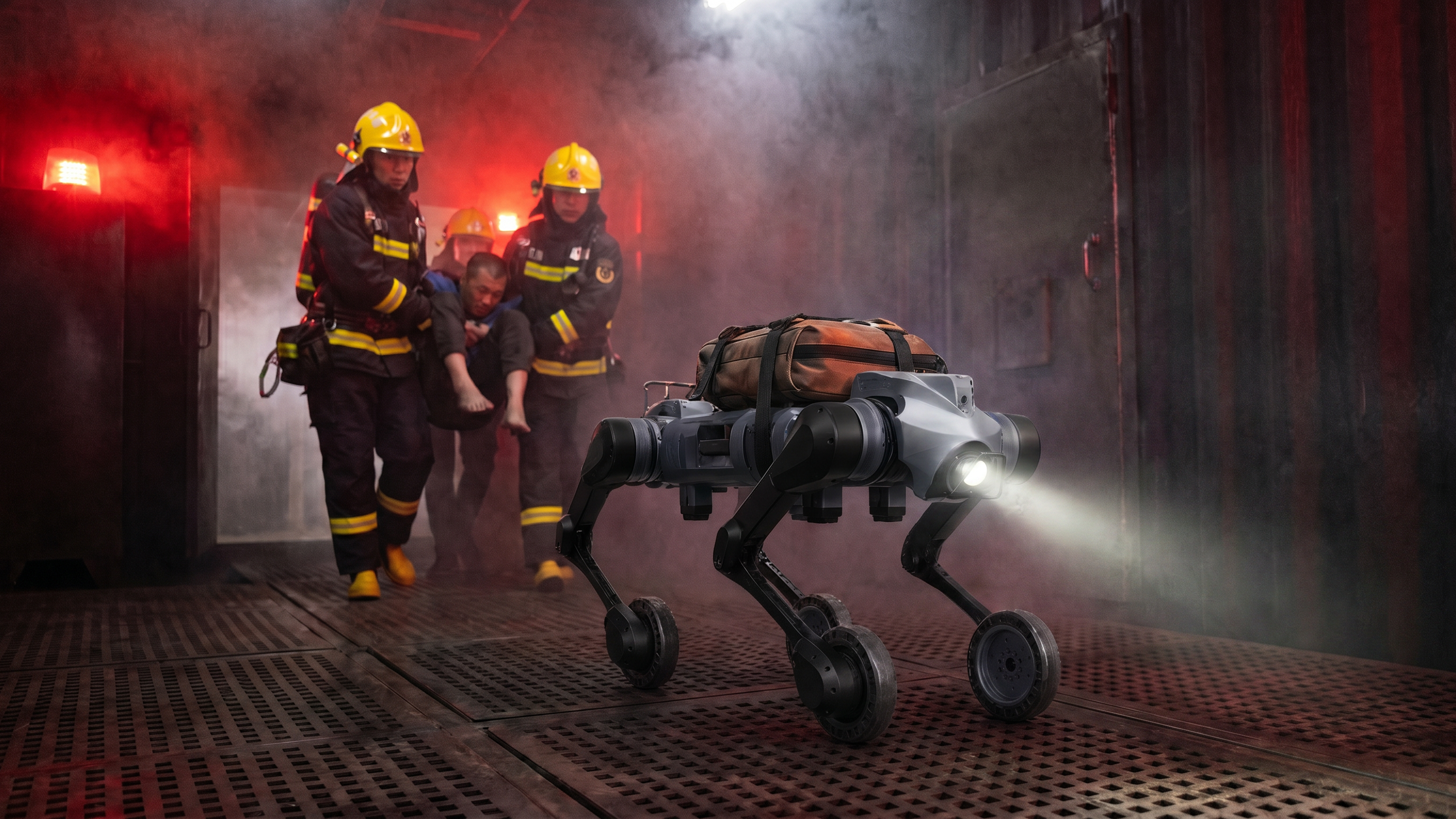

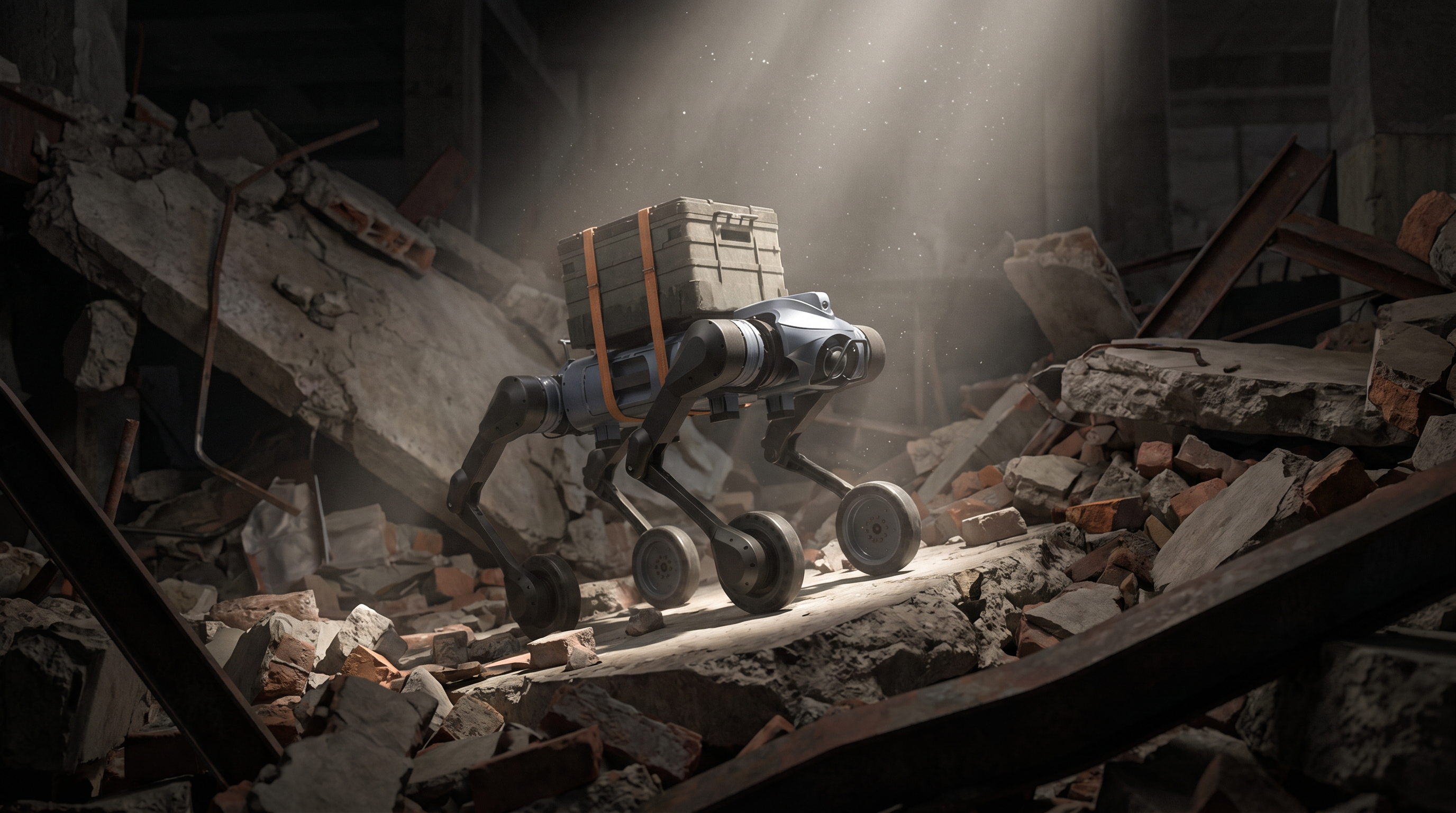

The D50WS delivers 100 kg continuous payload and 200 kg instantaneous standing load — 2.5x the capacity of same category products. Capable of carrying heavy rescue tools, life detection systems, and other professional equipment. 12 standard M8 mounting points integrated into the top deck. Operating speed 0–3 m/s. Climbs single steps up to 30 cm and continuous stairways up to 20 cm. Handles 45° slopes with stability. Auto-recovery within 20 seconds after falling.

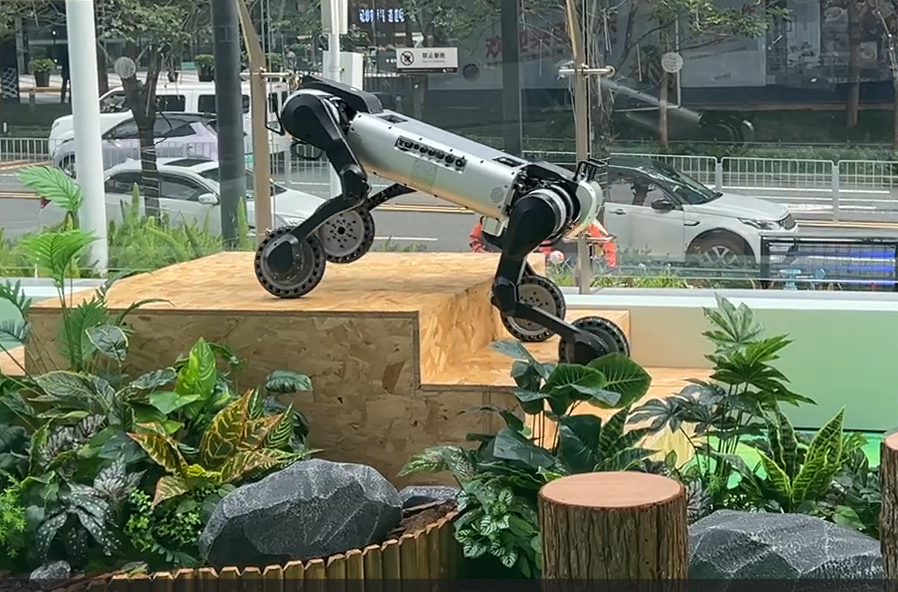

Operating speed 0–3m/s. Climbs single steps up to 30cm and continuous stairways up to 20cm. Handles 45° slopes with stability. Auto-recovery within 20 seconds after falling.

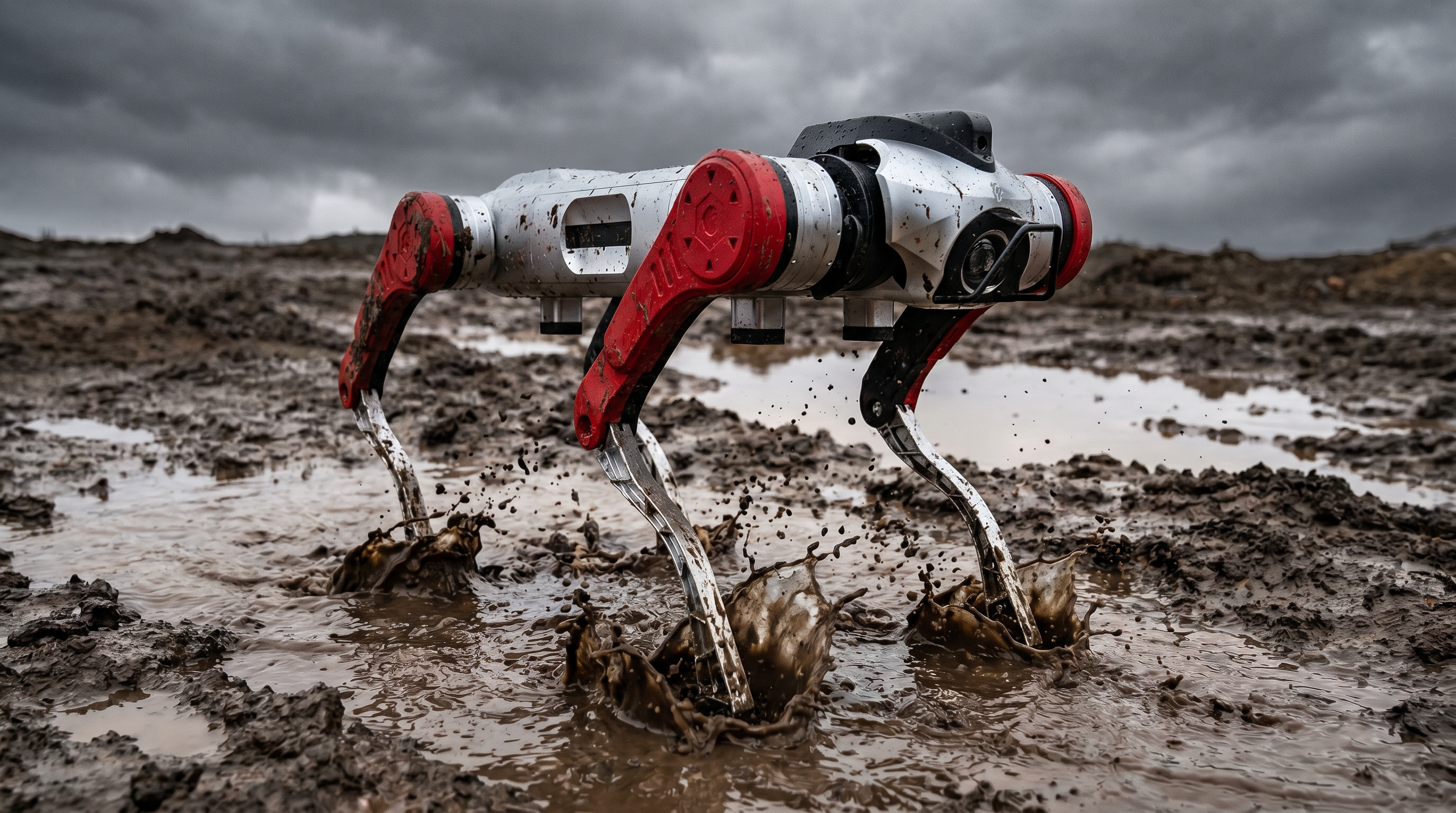

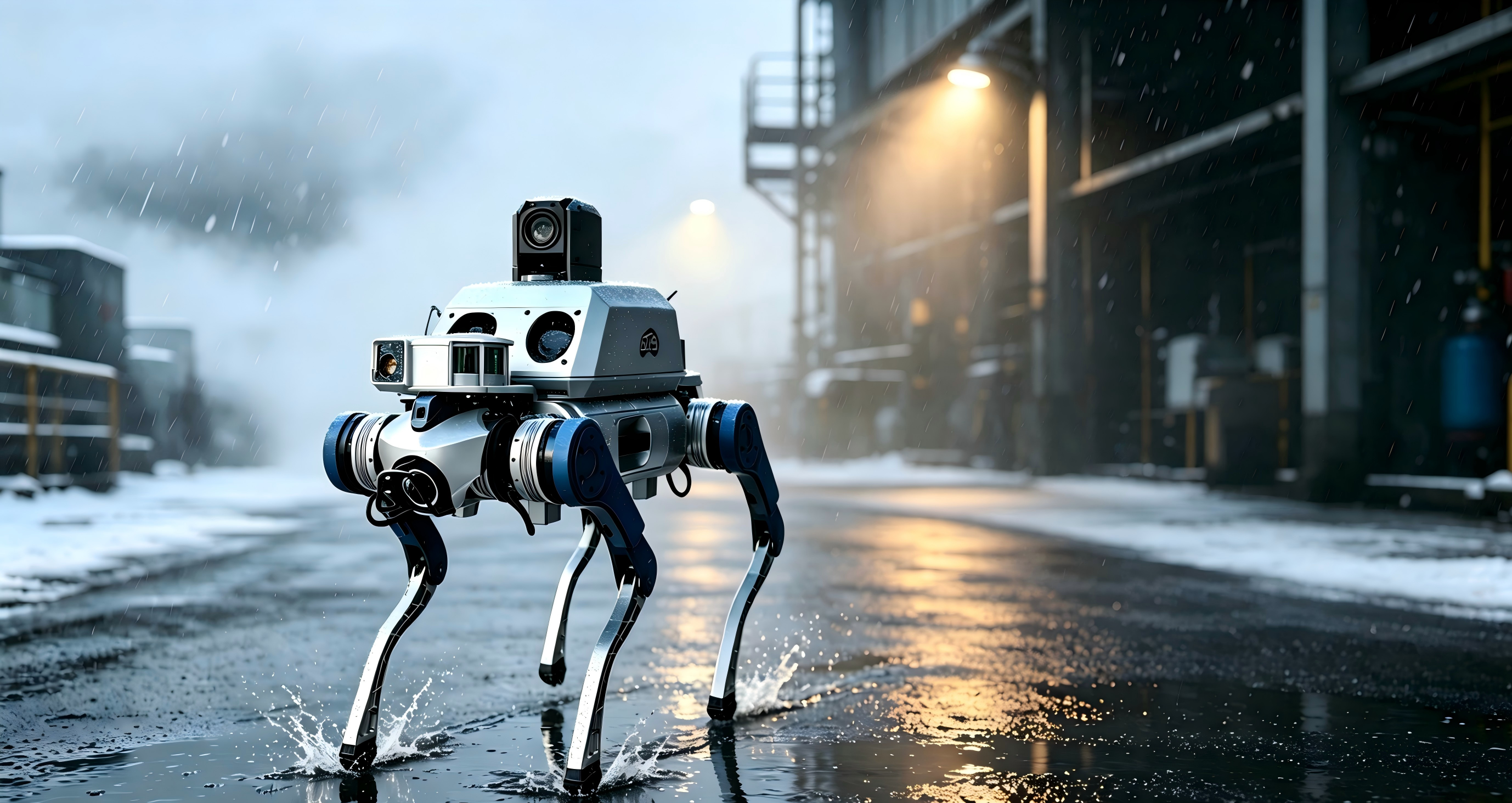

IP67-rated protection against dust and water. Wading depth up to 30cm. Operates reliably from -20°C to 55°C.

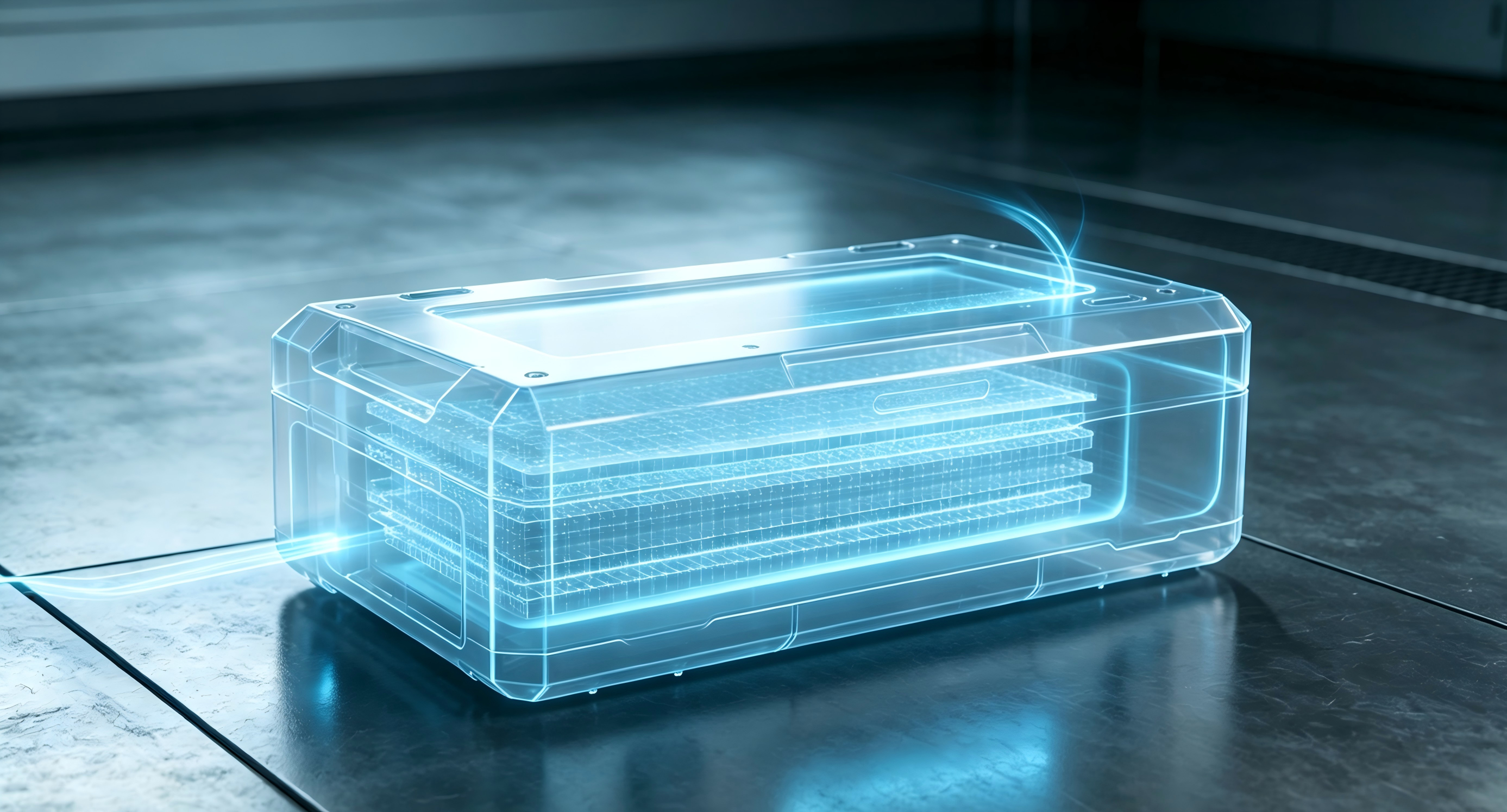

Powered by a 2081Wh battery, swappable in seconds on site. Optional 2-hour fast charging available.

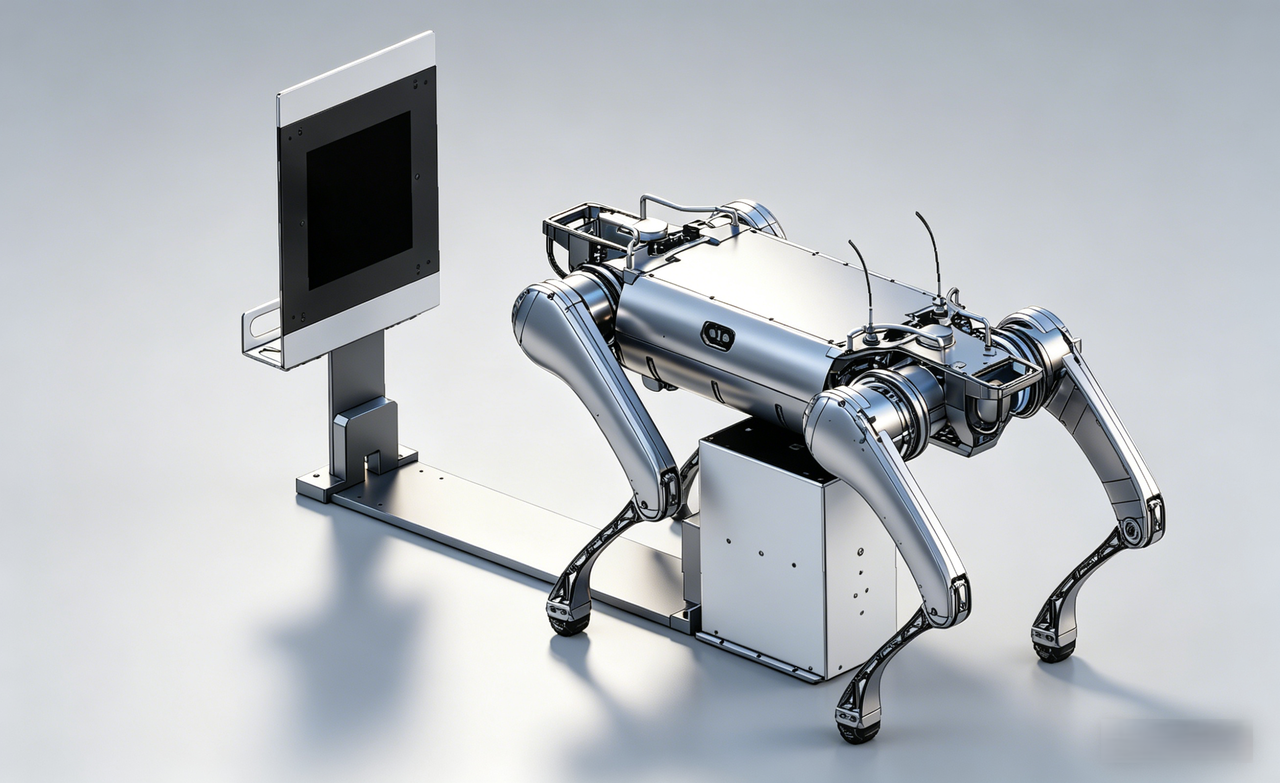

Equipped with 1× LiDAR, 2× wide-angle cameras, and an RK3588 compute platform. Supports both high-level and low-level development. Optional autonomous docking charging. High-definition video transmission capability.
Flexible upgrade according to actual requirements
Jetson Orin NX, 8GB RAM | 128GB Storage | 70 TOPS AI computing power

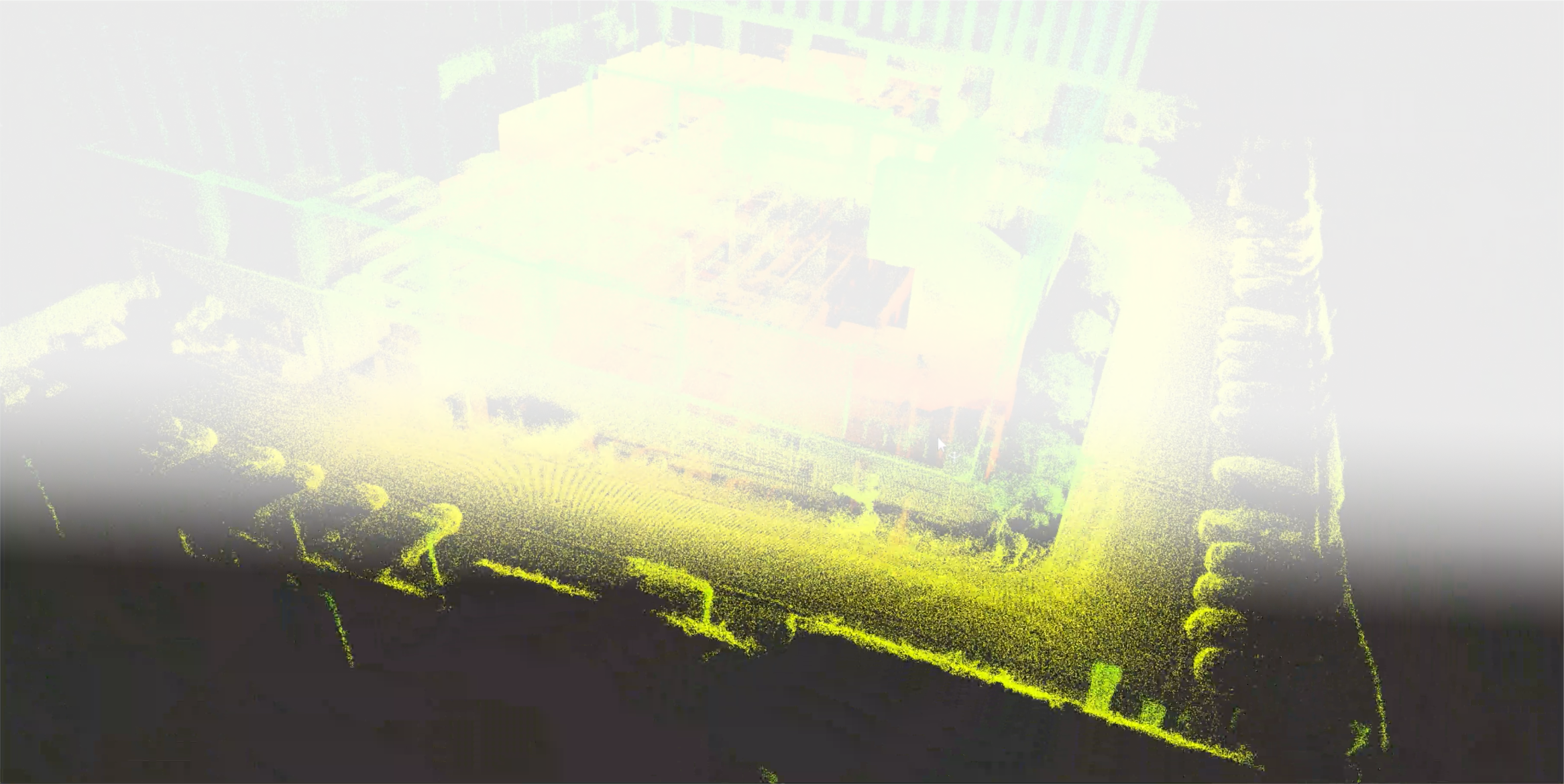

SLAM positioning & mapping, autonomous navigation, auto‑charging
.png)
Dual‑light gimbal, RTK module, wireless vector positioning & following module, 5G module, charging dock
Strong terrain adaptability, suitable for industrial inspection and field operations.

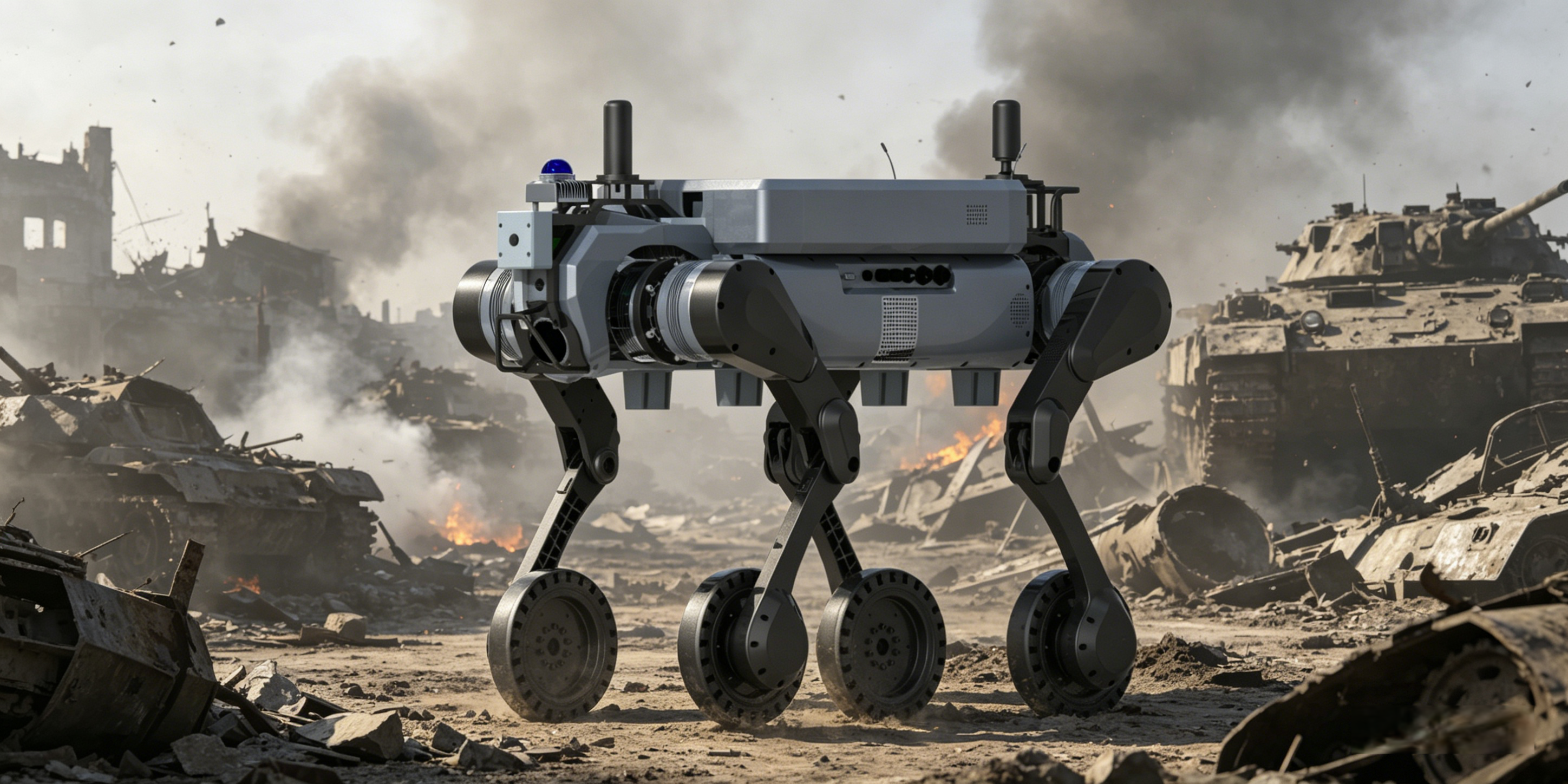

hort-Leg Wheel-Legged, Extreme Payload, Extended Endurance
Legged Agility, Autonomously Deployed
Long-Leg Wheel-Legged · Heavy Payload · Extended Endurance
D50系列参数
*所有参数均为实验室环境下测试
开放标准接口与开发支持，让行业应用从验证到部署更加高效。
